Recommendations:

1. In order to ensure better use effect of manual knob and motor unit, the width of single group of louvers shall not exceed 1150mm.

2.The selection of high-quality shutter can ensure good visual effect and aesthetics for a long time, and avoid the trouble of having to disassemble the partition wall due to the replacement of poor shutter.

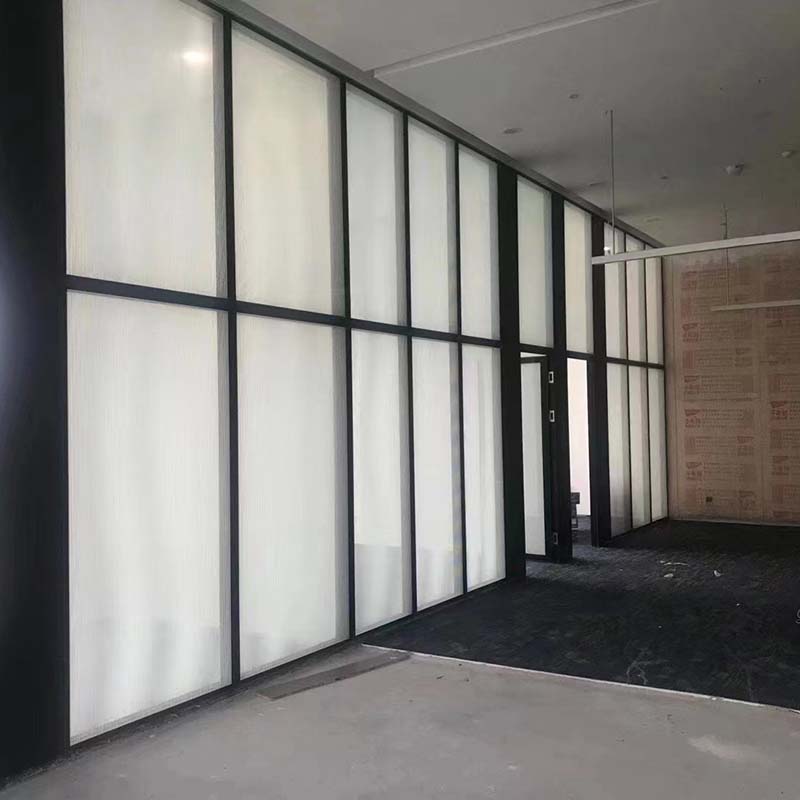

Aluminum glass office partitions

Specification: the aluminum surface is anodized alkali sand treatment, and the conventional color is silver. Other relevant colors can be customized according to the actual needs of customers

Description: sound insulation: 45-65db (in line with the sound insulation requirements of normal office environment) V louver allows the ingenious combination of privacy and publicity of the office, which can achieve the spatial effect of proximity and relative isolation between leaders and employees. Aluminum color: the aluminum surface is treated with anodized alkali sand, the conventional color is silver, and other relevant colors can be customized according to the actual needs of customers.

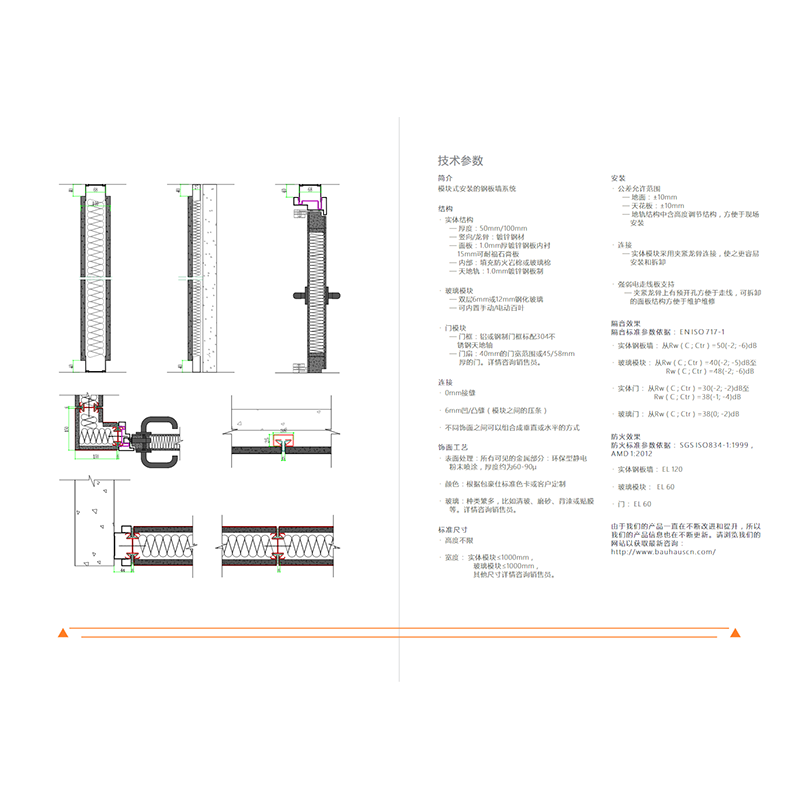

Parameter description

specification: standard maximum module (width) × high × Thick); v (2400W × 3000H × 80D)

aluminum color: the aluminum surface is anodized alkali sand treatment, and the conventional color is silver. Other relevant colors can be customized according to the actual needs of customers
fire resistance rating: above 70min

sound insulation: 45-65db (in line with the sound insulation requirements of normal office environment) V louver allows the ingenious combination of privacy and publicity of the office, which can achieve the spatial effect of proximity and relative isolation between leaders and employees.

Material description of louver interval

internal structure: anodic aluminum alloy profile connection and fixation
external frame: assembled from high-precision oxygen electrode alumina alloy profile.

double sided glass: a layer of 5mm thick tempered glass is used on both sides of the aluminum frame, and the four sides of the glass are embedded in the aluminum alloy parts and fastened.

metal shutter: external knob, 25mm wide shutter, 0.2mm thick
