Details of the content:

Material: the wall frame modules of the system are made of 1.2-2.2 wall thickness GB / 6063-T5 aluminum alloy. The surface is anodized or powder is not coated to make high-precision aluminum alloy profiles. The aesthetics and durability are far beyond the surface treatment of general aluminum alloy profiles. It has good corrosion resistance.

Wall thickness: the thickness of finished surface is 26mm, and the thickness of door frame is 80mm
Connection mode: the card slot is fixed in one piece
Frame element: all aluminum frame

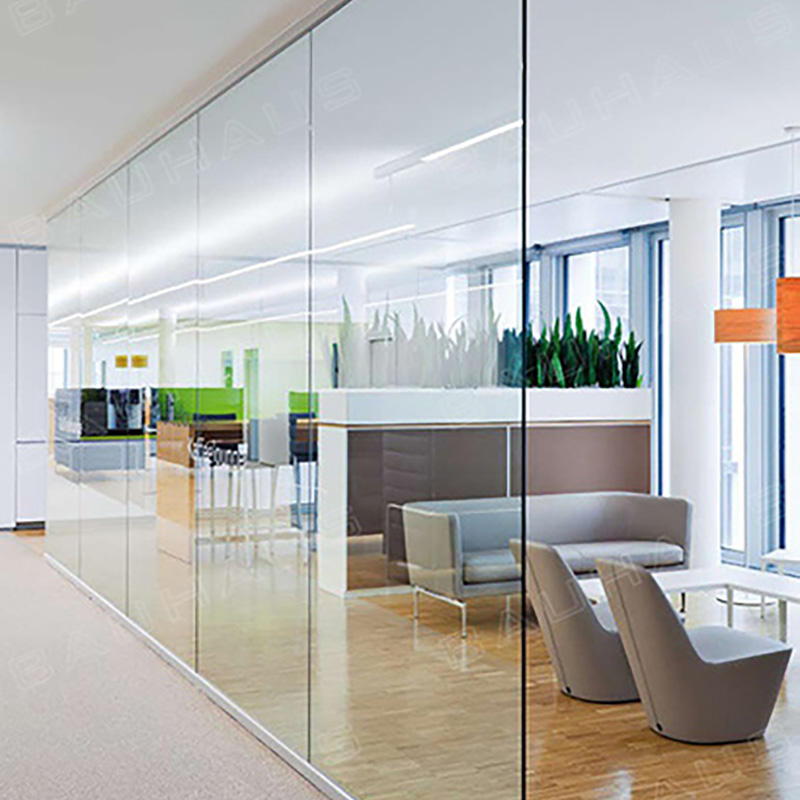

Glass element: 10mm and 12mm thick tempered glass is used for single-layer system, and the glass form can be determined according to the design requirements

Panel elements: the panel is made of 12mm thick, trimeric hydrogen amine board, calcium silicate board, steel panel and other different materials

Sound insulation effect: when the wall reaches the top, it has certain sound insulation performance
Fire protection: it can play a certain role in flame retardancy with fireproof panel

Functional elements: the internal wiring of the system can be fully improved, and the wiring slot on the wall can be installed with a switch panel

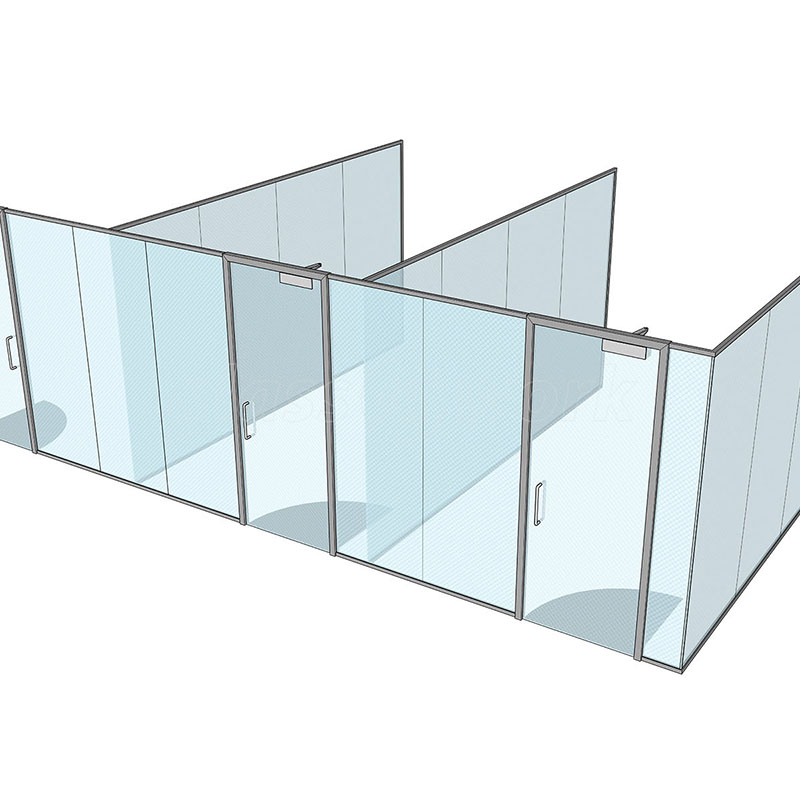

Wall module: the height is from one grid to the top. At the same time, it can also realize the separation of modules of various shapes according to the design requirements

Material analysis:

A. Available materials
Melamine plate, calcium silicate plate, steel plate, glass, etc
B. Module standard matching form
①. Full height glass,
C. Special matching form of module
①. Full height steel plate
②. Full height melamine plate

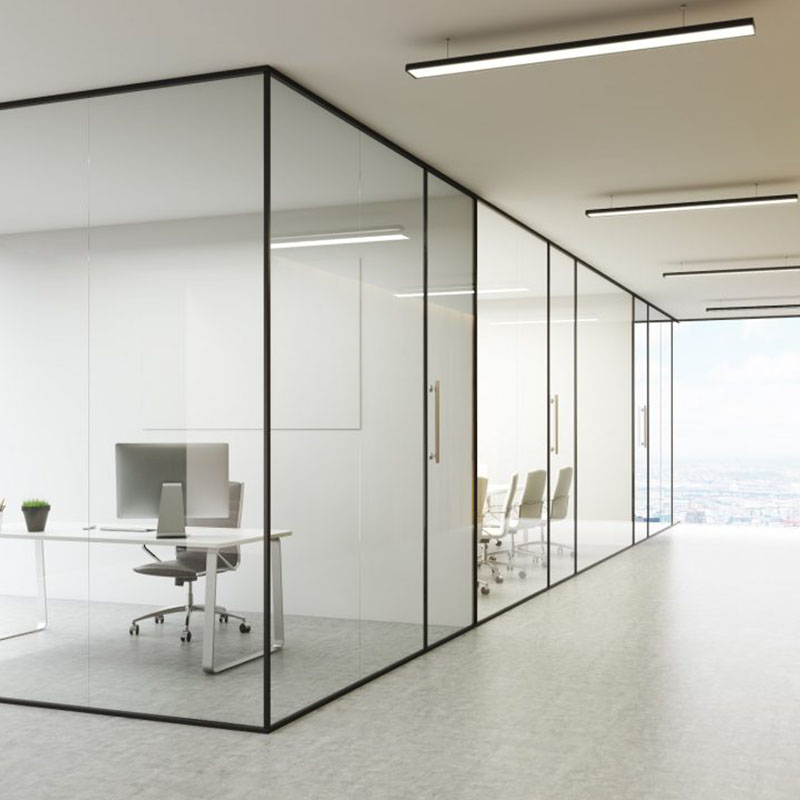

Aluminum glass office partitions:

Specification: the aluminum surface is anodized alkali sand treatment, and the conventional color is silver. Other relevant colors can be customized according to the actual needs of customers

Description: sound insulation: 45-65db (in line with the sound insulation requirements of normal office environment) V louver allows the ingenious combination of privacy and publicity of the office, which can achieve the spatial effect of proximity and relative isolation between leaders and employees. Aluminum color: the aluminum surface is treated with anodized alkali sand, the conventional color is silver, and other relevant colors can be customized according to the actual needs of customers.

Parameter description:

specification: standard maximum module (width) × high × Thick); v (2400W × 3000H × 80D)

aluminum color: the aluminum surface is anodized alkali sand treatment, and the conventional color is silver. Other relevant colors can be customized according to the actual needs of customers
fire resistance rating: above 70min

sound insulation: 45-65db (in line with the sound insulation requirements of normal office environment) V louver allows the ingenious combination of privacy and publicity of the office, which can achieve the spatial effect of proximity and relative isolation between leaders and employees.

Material description of louver interval:

internal structure: anodic aluminum alloy profile connection and fixation
external frame: assembled from high-precision oxygen electrode alumina alloy profile.

double sided glass: a layer of 5mm thick tempered glass is used on both sides of the aluminum frame, and the four sides of the glass are embedded in the aluminum alloy parts and fastened.

metal shutter: external knob, 25mm wide shutter, 0.2mm thick
